RAC 171

$831.32

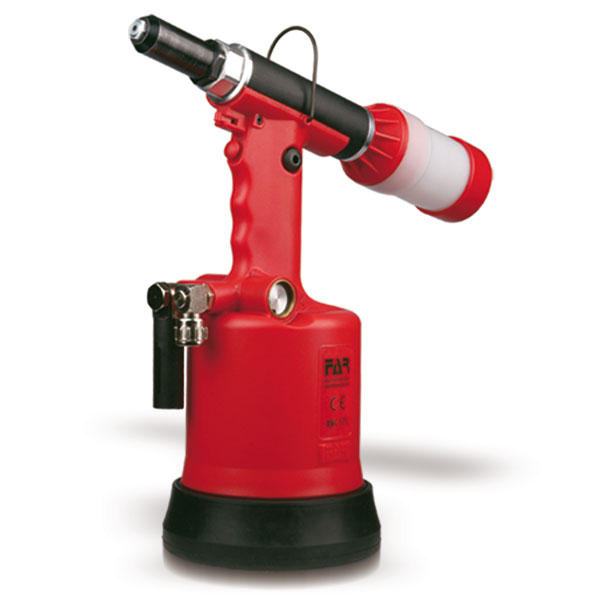

700171 Hydropneumatic tool for blind rivets

Description

Hydropneumatic tool with holding of the rivet and nail recovery for blind rivets and structural high performances FARBOLT rivets and similar.
Standard rivets Ø 4,8 except for aluminium.
Standard rivets Ø 7,8 only in aluminium

Maintenance instructions are available in the Video section.
Maximum force 17273 N.
Stroke 25.5 mm.

Ø
Standard rivets
Multistage rivets


3/16 (4.8) Except Alum.
.236 (6)

1/4 (6.4)

.307 (7.8) Alum. Only


Additional information

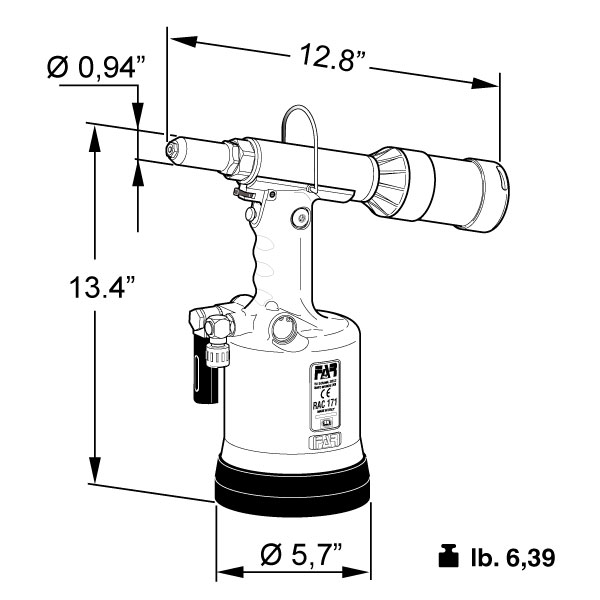

Weight8 lbs
Dimensions20 × 16 × 8 in

Accessories

Video

Instructions for oil refilling

Instructions in case of nail's block

Instructions for clamps maintenance
