RAC 172

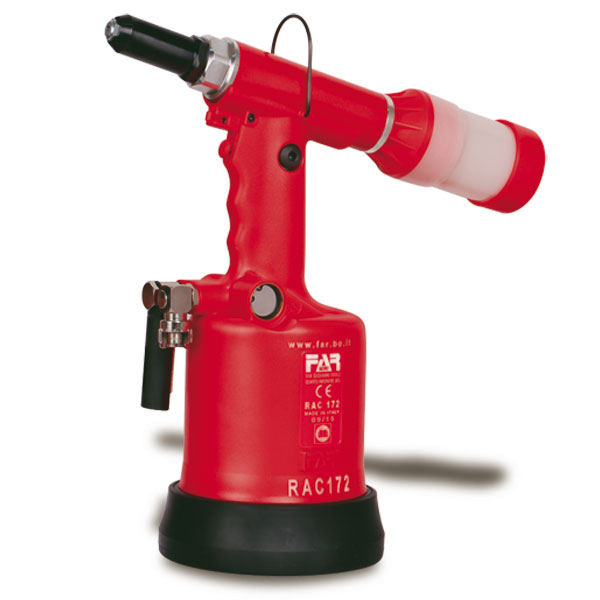

700172 Hydropneumatic tool for high-performance blind rivets


Holding of the rivet and recovery nail designed to fasten high performance rivets with ø 6mm or 6.4mm and grooved nail
The riveting tool is able to provide a force of 22725N and a stroke of 19,5 mm. Which gives the possibility to fix rivets such as TAMP AP, FARBOLT or other similar high performance rivets

Maintenance instructions are available in the Video section.

Blind rivets with grooved nail P= .031(.8)
.236 (6)
1/4 (6.4)

Additional information

Weight11 lbs

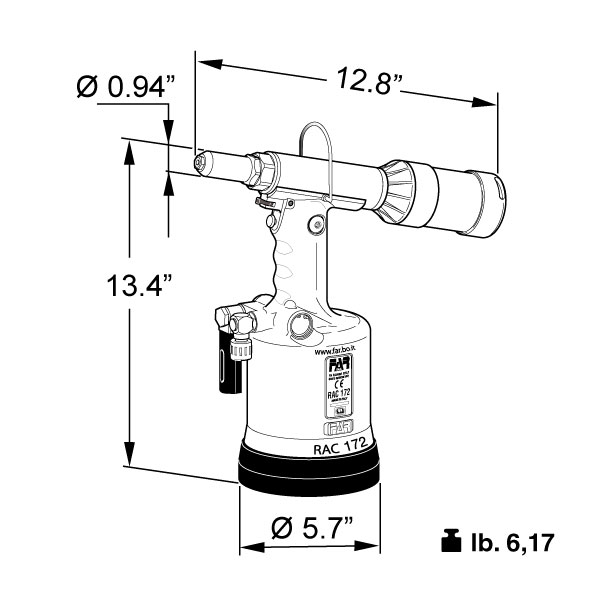

Dimensions16 × 11 × 7 in



Instructions for oil refilling

Instructions in case of nail's block

Instructions for clamps maintenance
