Name: RAC 83/AX
SKU: 70AX83
Price: 279.32 USD
Availability: InStock

Description

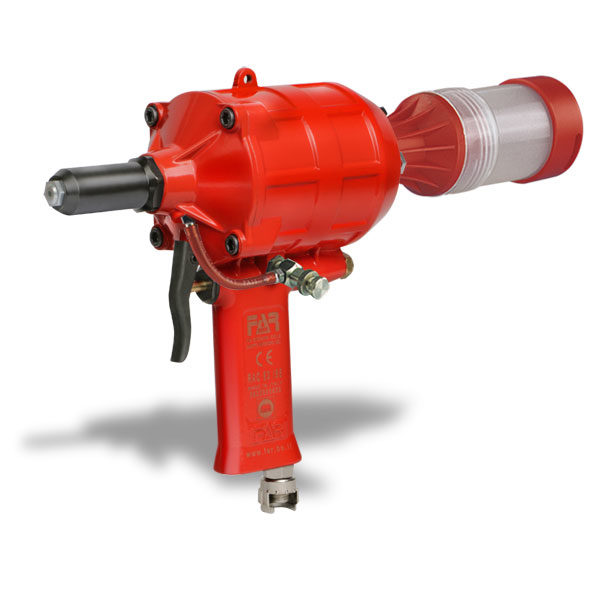

Pneumatic tool with rivet holding and nail recovery.
Standard rivets Ø 4,8 only in aluminium.
Multifar rivets Ø 4 only in aluminium.
Maximum force 5372 N.
Stroke 19 mm.

Standard rivets

Multistage rivets (5/32 size Alum. Only )

3/32 (2.4)

.118 (3)

1/8 (3.2)

5/32 (4)

3/16 (4.8) Alum. Only

Additional information

Weight	6 lbs
Dimensions	14 × 11 × 6 in

Accessories

719001 – Extended nozzle U1 ø 3,5 / 4 D = 7
$22.45 Add to cart
721333 Extended head 210 mm for RAC 83/95, RAC 83/AX, RAC 83/90 & RAC 150 AX
$213.13 Add to cart
719005 – Extended nozzle U2 ø 5. D = 8
$22.45 Add to cart
720951 Head with reduced section 35 mm for RAC 83/95, RAC 83/AX, RAC 83/90 & RAC 150 AX
$291.75 Add to cart
719008 – Extended nozzle U2 ø 2,5 ÷ 3,2 D = 7
$22.45 Add to cart
721856 Head with reduced section 60 mm for RAC 83/95, RAC 83/AX, RAC 83/90 & RAC 150 AX
$413.69 Add to cart
721334 Extended head 130 mm for RAC 83/95, RAC 83/AX, RAC 83/90 & RAC 150 AX
$174.47 Add to cart
719002 – Extended nozzle U1 ø 4,8 D = 8
$22.45 Add to cart
719004 – Extended nozzle U2 ø 3,5 / 4 D = 7
$22.45 Add to cart
719007 Extended nozzle U1 ø 2,5 ÷ 3,2 D = 7
$22.45 Add to cart
