It is important that the mechanical features data are used only as general rule, as many other factors could influence the rivet performances.
The shear test on fastened rivet is made using the equipment as described
at pic. 3 of UNI EN ISO 14589:2003 specification.
The mechanical features in the catalogue are comparable with
the corresponding specifications of reference.

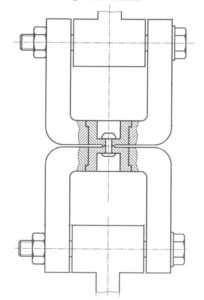

The tensile test on fastened rivet is made using the equipment as described at pic. 5 of UNI EN ISO 14589:2003 specification.
The mechanical features in the catalogue are comparable with the corresponding specifications of reference.
This test is made as defined in the corresponding specification of each rivet type.

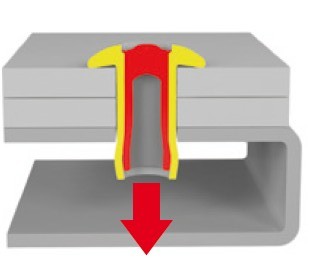

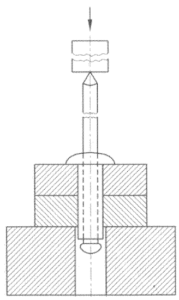

The test is carried out in compliance with ISO 14589:2003, to check that the remaining part of the pin into the rivet cannot be pushed out by the testing load.
The strength for the pin pushout must be higher than 10 N when subject to test
in compliance with ISO 14589:2003 specification.
